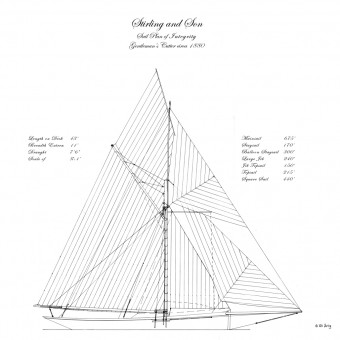

Gentleman’s cutter Integrity in the style of an 1880 cruiser-racer, beautifully drawn by Will Stirling. Click on the thumbnails for a bigger image

Here’s a lovely piece of work: a set of drawings by Will Stirling for a forthcoming project to be built by Stirling & Son.  She’s a 43ft gentleman’s cutter of the period around 1880 drawn with careful reference to craft of that era including Nicholson’s Marigold, Beavor-Webb’s Partridge, GLWatson’s Vanduara, Dixon Kemp’s Zoraida and Fife’s Bloodhound. A cruising-racer, she can set 2,000 square feet of canvas in fine weather, yet Will says she will snug down to trysail and storm jib in poor conditions.

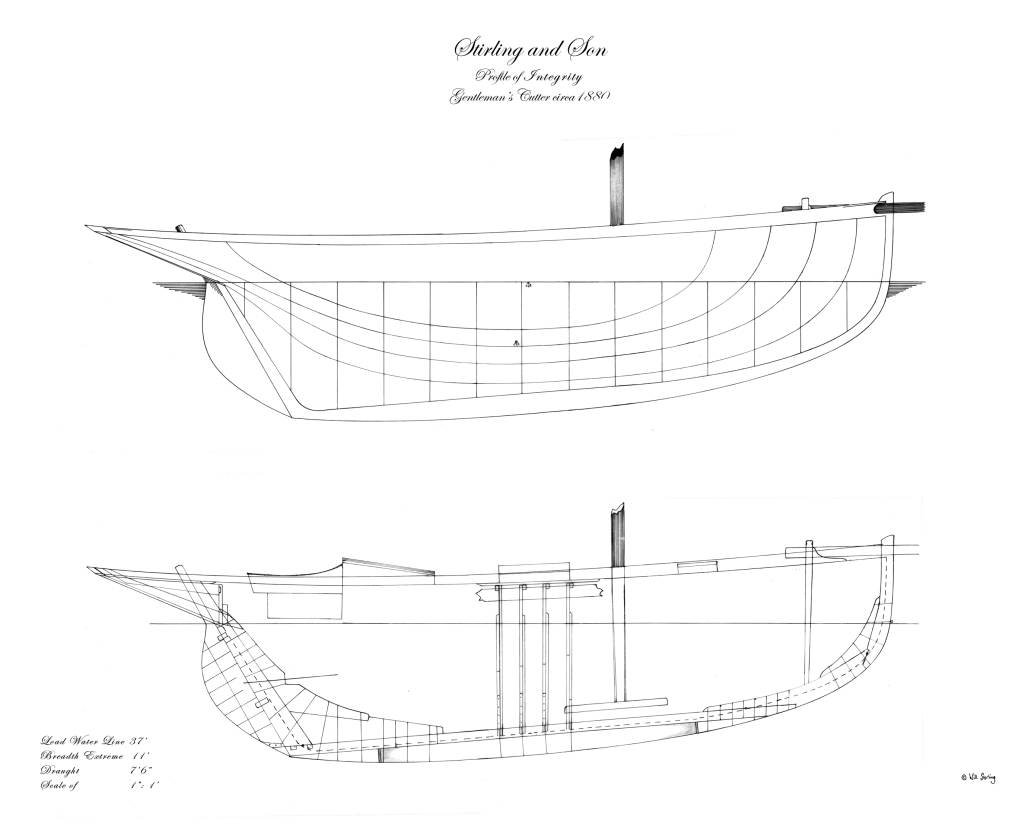

Click on the thumbnails above to see the lines and boatbuilding details more clearly. As you do, it’s worth reflecting that thay have been created without the aid of computer-aided drafting software – Will completed the whole drafting job the traditional and laborious way using ships curves and calculations. I have no doubt that her carvel-built wooden hull will be equally historically accurate from stem to stern.

Many thanks for this Will! I think Integrity is bound to attract some serious attention over the coming months, and I’m delighted to be able to give the boating world this preview.

Contact Will at http://www.stirlingandson.co.uk, tel 01822 614 259.

The cut out components of Norman’s skiff wait to be taped and stitched together; the model on his desk proved the principle

Norman Fuller has started work on the rowing version of the Ella skiff, a simple 12ft stitch and glue flattie skiff named after my daughter. He lives in Norwich, close to the Norfolk Broads, and I gather intends to take it to the Barton Broad UK Home Built Boat Rally event in May – so let’s all wish him luck with his project. It’s looking good so far, and I’m pleased to see he built a model first.

Making a model is always a good first step, not least because it boosts the builder’s confidence in the design and the process.

For more on the rowing version of the Ella skiff, click here.

Barton skiff construction drawings

I’m shattered, but it’s been worth it because I’m now ready to share the key construction details of my simple stitch and glue outboard skiff designed for use with a low-powered outboard of 5hp or so – and certainly not much more, not least because the prop won’t fit!!!

I should add that my usual caveats apply here. I have no qualifications to design boats and make no claims for the performance or safety of this craft. I accept no responsibility for any accident or loss that may be incurred during building or use of this boat. What I have drawn must be regarded as experimental.

If you’re still interested, here are my key construction drawings: Barton-skiff-plans-package . Expect them to add up to around a meg, as I’ve included dxf files for those who like that kind of thing. I guess they will also be useful for anyone who wants to check a particular dimension. If anyone finds an error, please let me know!

The notes are sketchy to say the least, but I have it in mind that the bottom and frames should be of 1/2in ply, while the sides can be of 3/8ths. I’d advocate using marine ply, covering it well with glass and epoxy, and using gapped inwales of 2in by 1in, with 1in blocks.

There are people out there who will be relieved to know I’m about to get started on another VERY IMPORTANT NEW PROJECT! I’m saying nothing yet though – it has to remain a secret for now.

See some earlier posts relating to the Barton/Low power skiff project:

Low power skiff – the nested panels
Poole canoes – the motorised flat-bottomed skiffs of Poole Harbour
A model of the Low-power skiff
New low-power skiff sketches and model drawings
